| Series | APPLINE5874 series |
| Size | Long: 280 | 560 | 840 | 1120 | 1401 | 1681 | 1821 | 1961 | 2242 or other on request, Width: 72mm, Height: 35mm or other on request, Width: 58mm, Height: 74mm |
| Installation way | Surface | Suspention |
| Body material: | Aluminum |

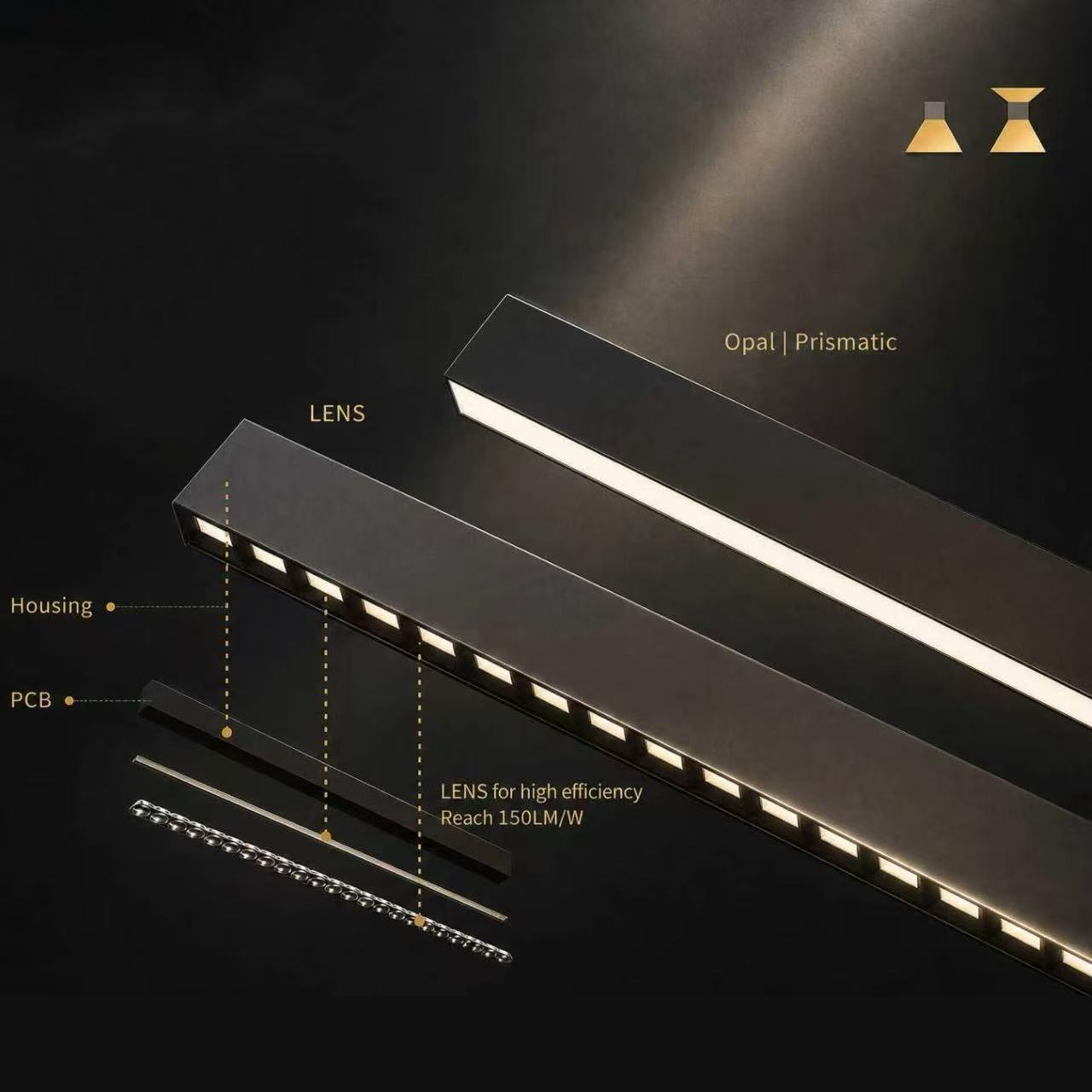

| Cover Materail | PC | PMMA |
| Color | Standard White in RAL9003, other RAL colours on request |

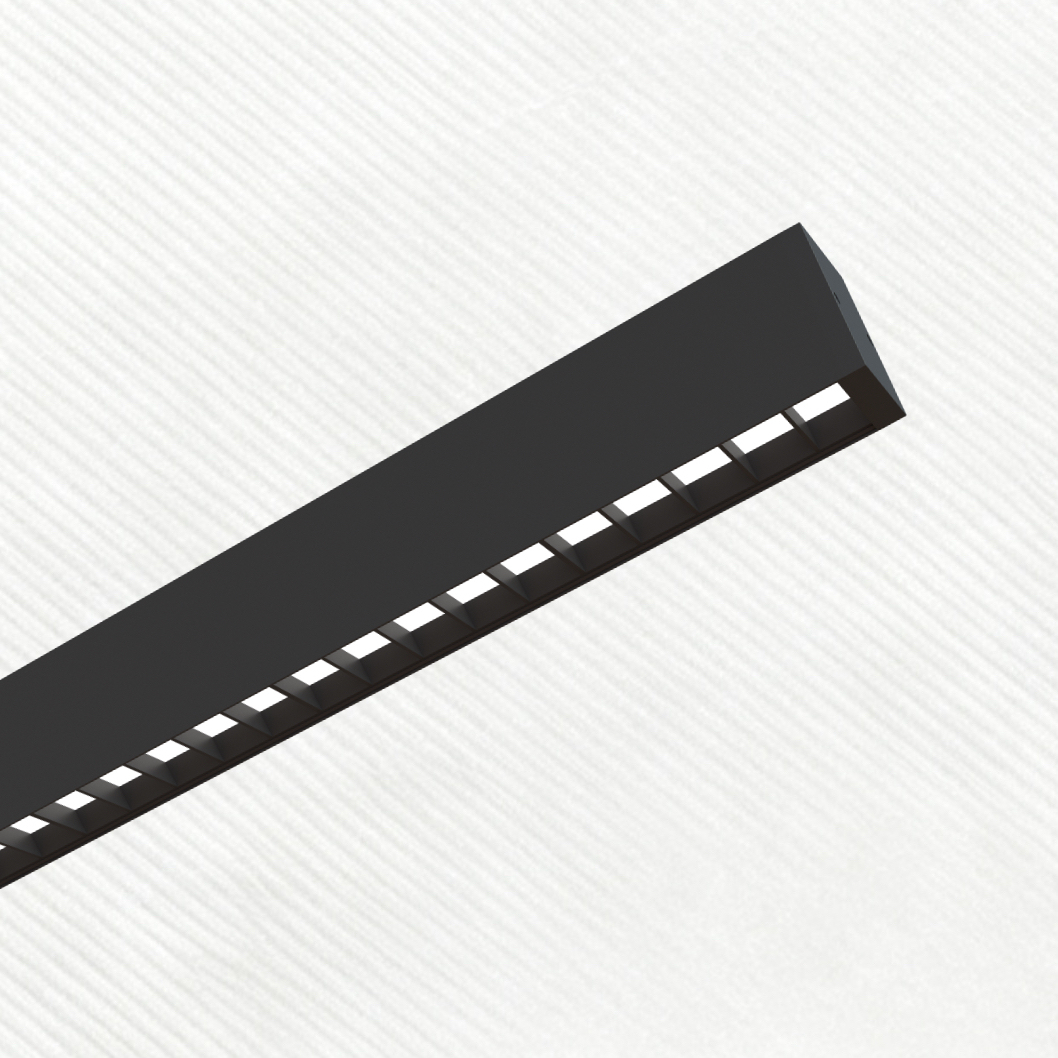

| Efficiency @CRI80 | Opal 140LPW | Prismatic 130LPW | Louver 105LPW |
| Efficiency @CRI90 | Opal 130LPW | Prismatic 120LPW | Louver 100LPW |
| Color temperature | 3000K | 4000K | 2700K–6500K TW or other request |
| CRI | 80 | 90 |
| Driver | On-off | DALI DT6 | DALI DT8 | 1–10V | Emergency | Sensor |
| Wireless control | Silvair | Casambi |

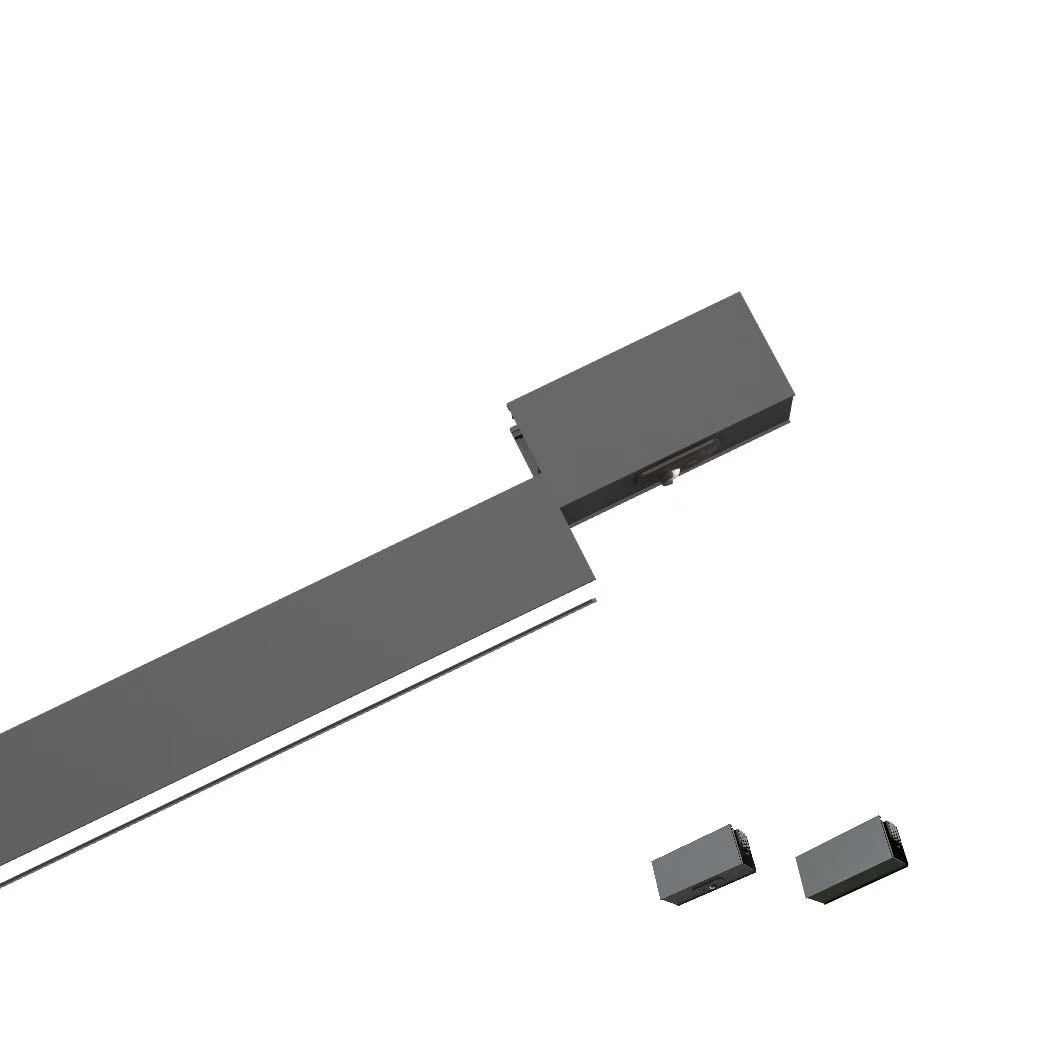

| Sensor | PIR sensor |
| Emergency unit | 2W 3H |
| IP rate | IP20 |
| IK rate | IK06 |
| Input voltage | 220–240V 50/60Hz |
| Operation temperature range | −10°C ... +35°C |
| Lighting direction: | Direct lighting |
| Beam angle: | Opal 100D | Prismatic 80D | Louver 80 | UGR19 film 60D |
| Warranty | 5 years warranty |

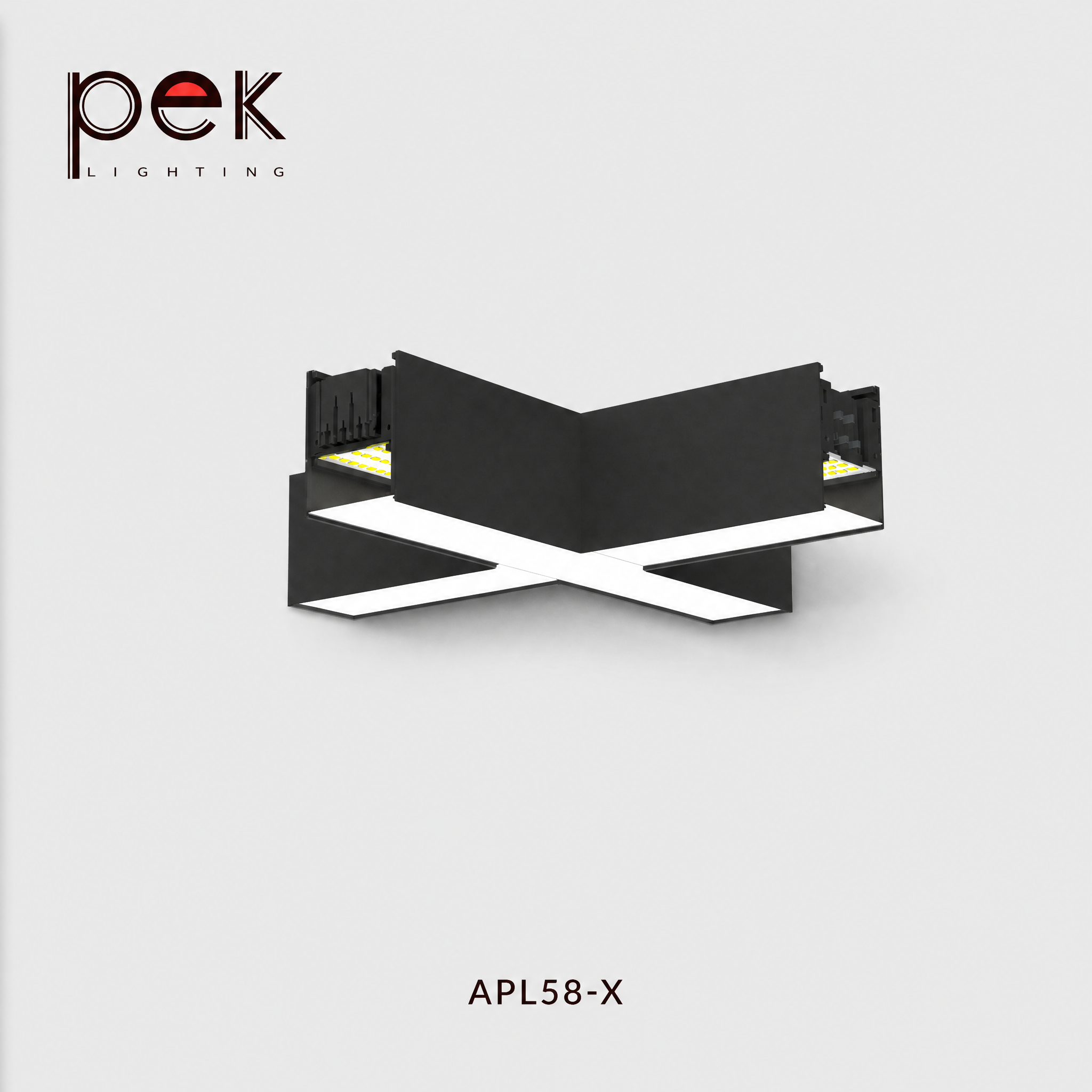

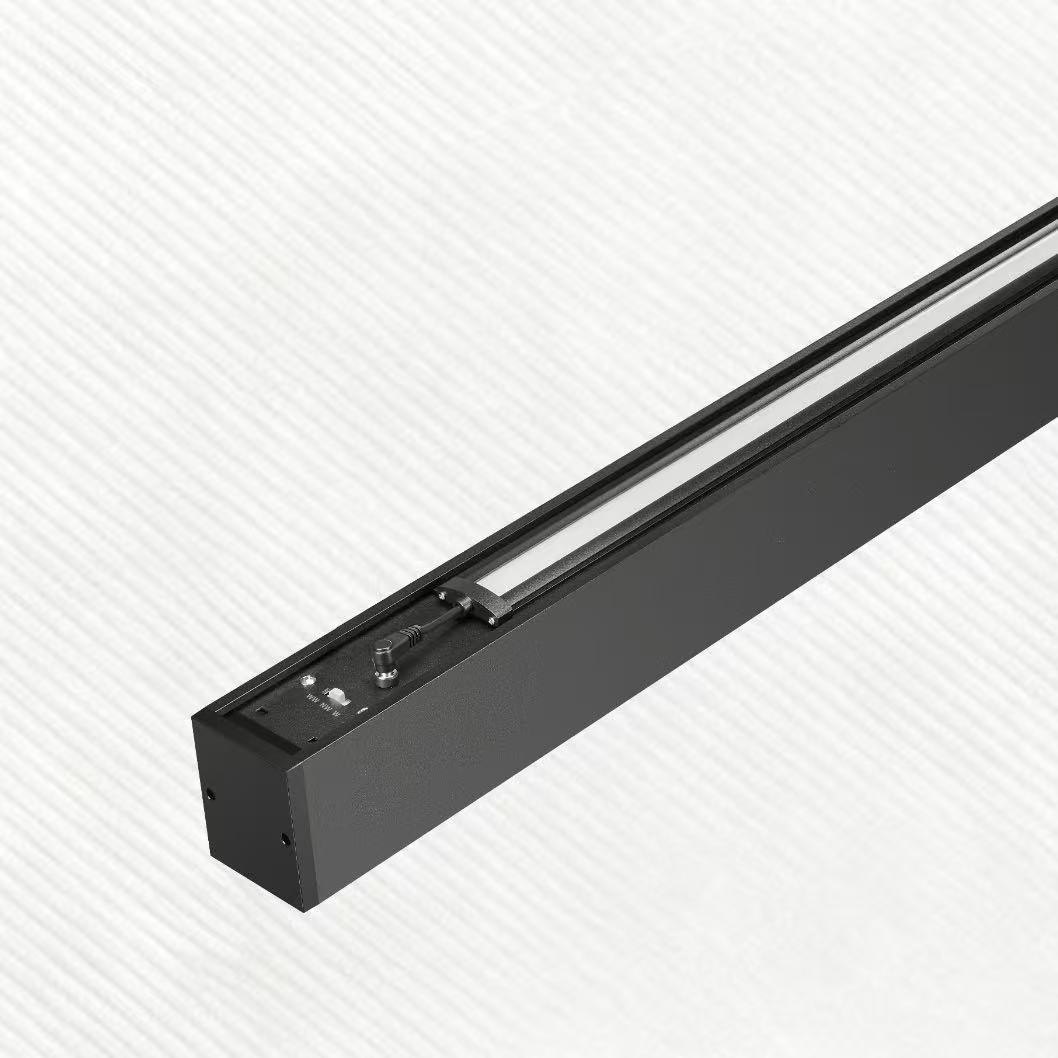

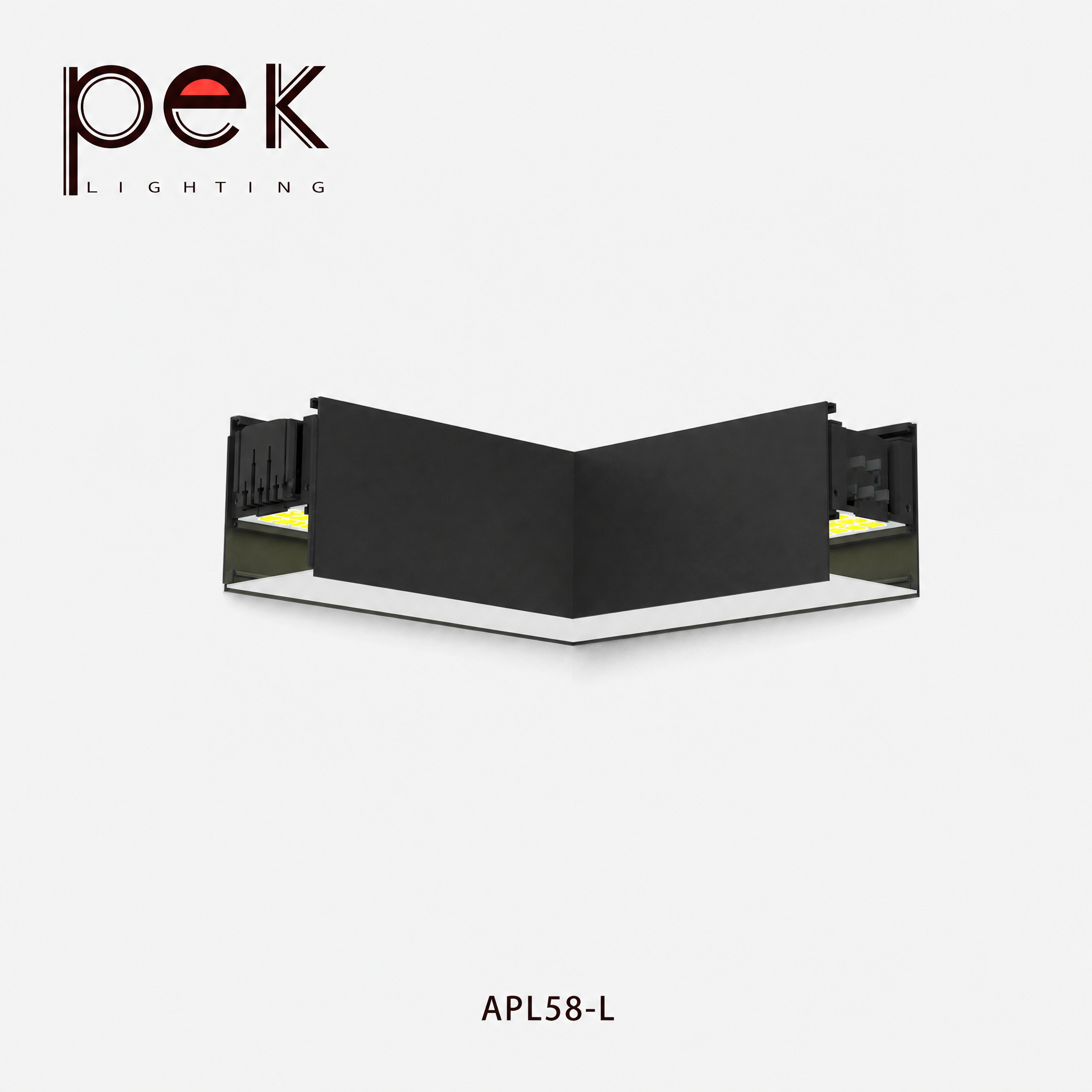

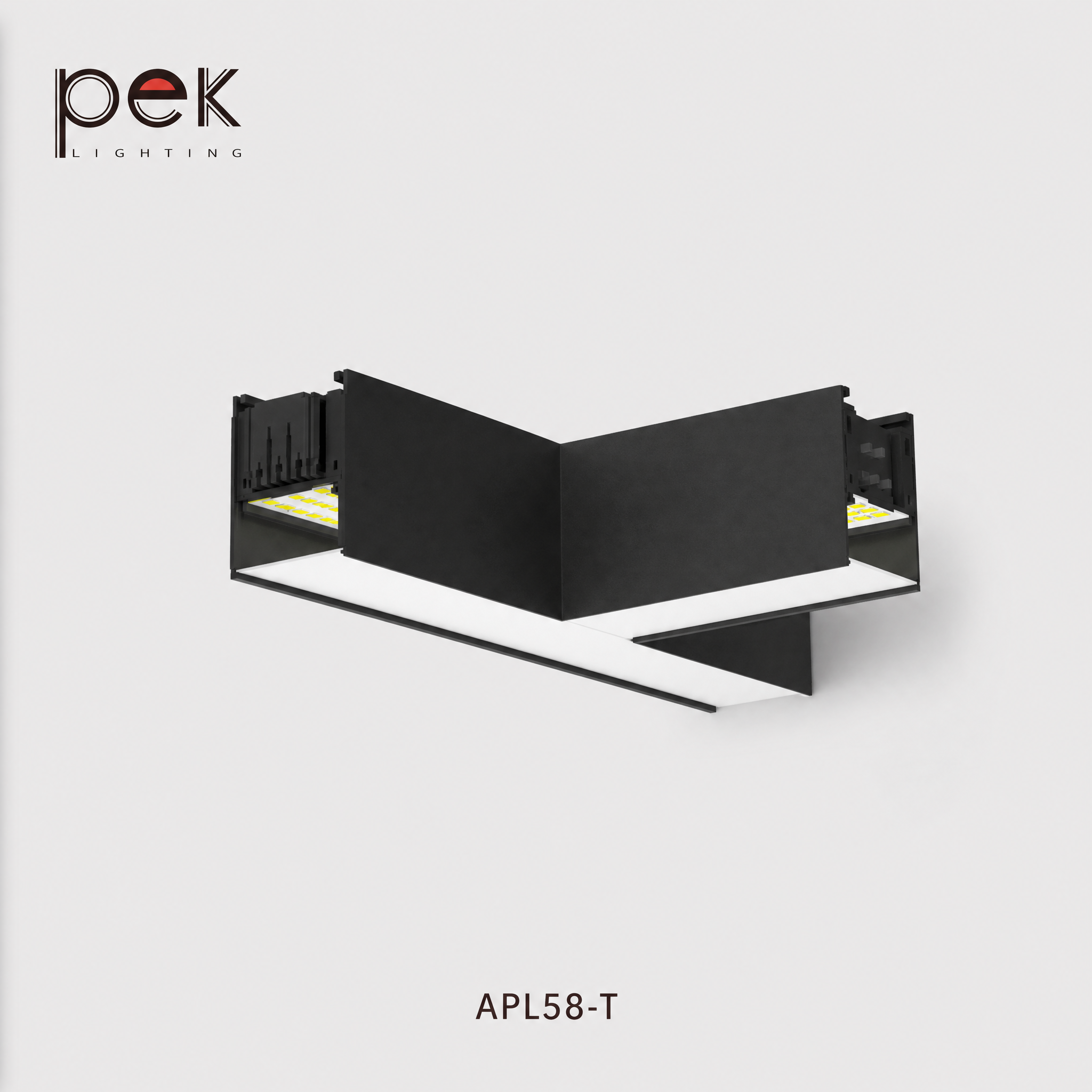

Uplight Module (indirect lighting) | L/T/X Corner Connectors
Spot Module (1/2/3 heads) | Blank Module
Smart Module (Casambi/Silvair) | Sensor Module (motion detection)
 |
 |
APPLINE5874 is fully compatible with Casambi’s Bluetooth mesh platform, which requires no additional gateway and enables direct control via smartphones or tablets.
With the DT8 tunable‑white option, you can adjust colour temperature and intensity per fixture, per group, or per scene – all wirelessly. The system also supports Casambi‑enabled PIR + daylight sensors for occupancy‑based dimming and daylight harvesting, as well as wireless rotary knobs and push‑button remotes for traditional tactile operation.
