Splicing: Ura-fast connection in under 2 seconds; light-leakage free.
Available Lengths: 280/ 560/ 840/ 1120/ 1401/ 1680/ 1820/ 1961/ 2240 mm
Continuous Run: Up to 40m per roll (opal or prismatic optic)
Electrical: End-feed AC power supply; supports up to 600W for a clean installation.
Performance: Selectable CCT and adjustable output power.
Optics: Tool-free interchangeable prismatic, opal
Control Compatibility: DALI, 1-10V, Casambi, Emergency, Sensor-ready.
Modular System: Includes slide-in up
Long :280| 560|840|1120|1401|1681|1821|1961|2242 or other on request, Width: 75mm , Height 96mm or other on request
Installation way
Surface | Suspention
Body material
Aluminum
Cover materail
PC | PMMA
Cover materail
PC | PMMA
Color
Standard White in RAL9003 other RAL colours on request
Efficinecy @CRI80
Opal 140LPW Prismatic 130LPW
Efficinecy @CRI90
Opal 130LPW Prismatic 120LPW
Color temperature
3000K | 4000K | 2700K-6500K TW or other request
CRI
80 | 90
Driver
On-off | DALI DT6 | DALI DT8 | 1-10V | Emergency | Sensor
Wireless control
Silvair | Casambi
Sensor
PIR sensor
Emergency unit
2W 3H
IP rate
IP20
IK rate
IK06
Input voltage
220-240V 50/60Hz
Operation temperature range
'-10°C ... +35°C
Lighting direction:
Direct lighting
Light distribution:
Symmetric
Beam angle:
Opal 100D Prismatic 80D Louver 80 UGR19 film 60D
Warranty
5 years waranty

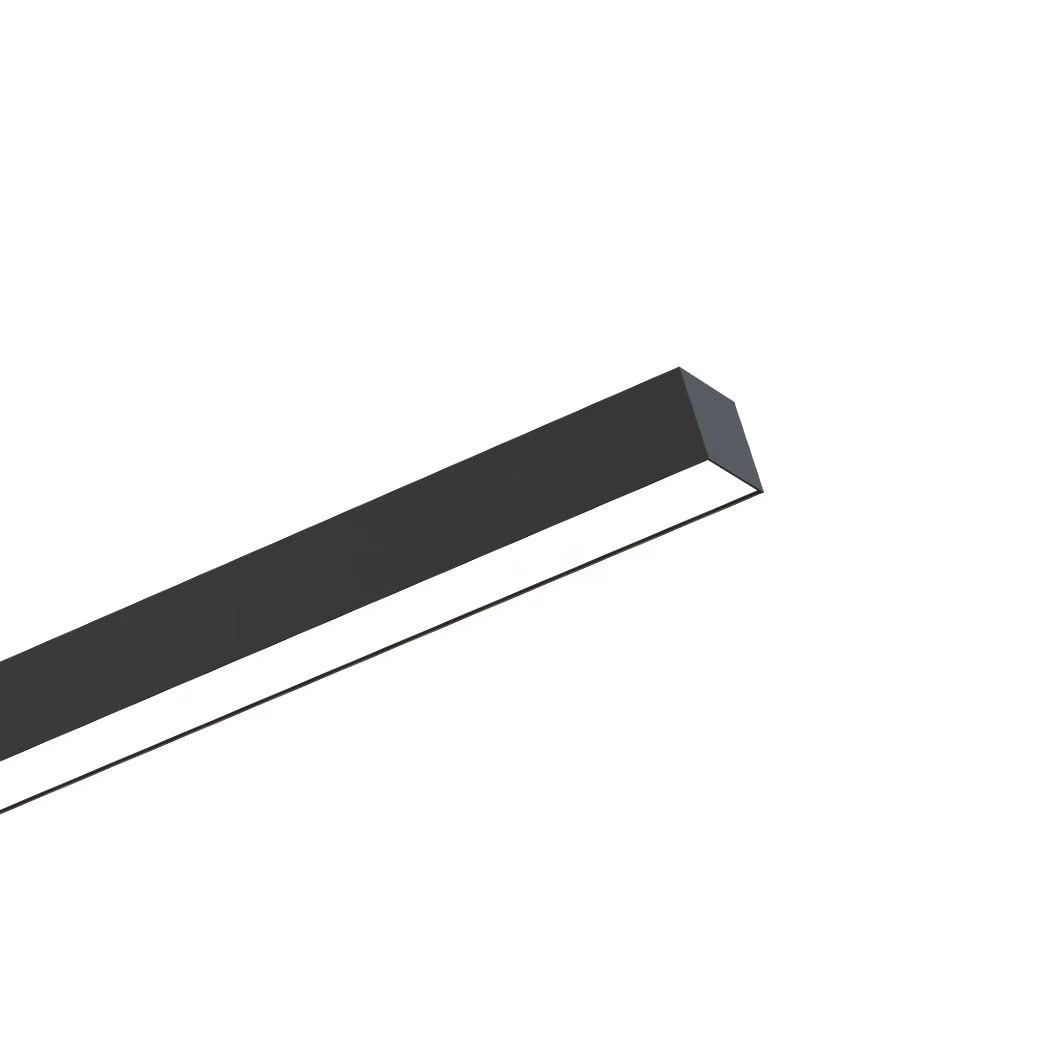

Product description APPLINE10095 is fully compatible with Casambi’s Bluetooth mesh platform, which requires no additional gateway and enables direct control via smartphones or tablets. With the DT8 tunable‑white option, you can adjust colour temperature and intensity per fixture, per group, or per scene – all wirelessly. The system also supports Casambi‑enabled PIR + daylight sensors for occupancy‑based dimming and daylight harvesting, as well as wireless rotary knobs and push‑button remotes for traditional tactile operation.
